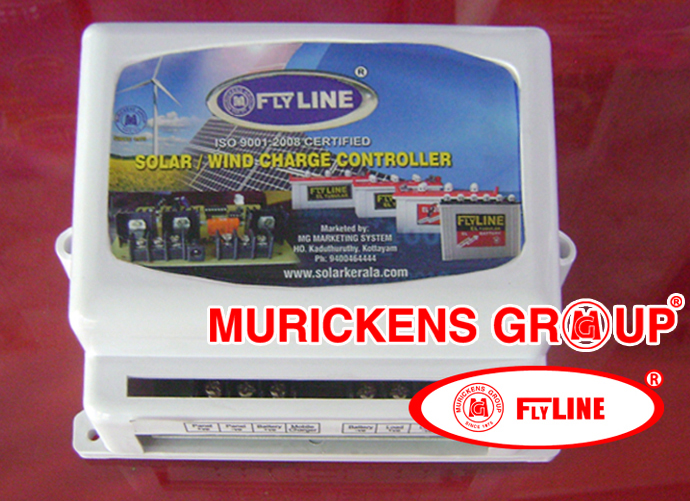

FLYLINE SOLAR CHARGE CONTROLLER

Flyline renewable energy charging control is a devise to control and utilize DC solar power. The main function of a charge controller or regulator is to protect your battery from overcharge and block a reverse current. Charging Controllers helps to get full panel output power. It regulates the voltage and current coming from the solar panels going to the battery. If a non-self-regulating solar array is connected to lead acid batteries with no overcharge protection (i.e. without charging controllers) the batteries life would be compromised

Simple controllers contain a transistor that shunt the PV charging circuit, terminating the charge at a pre-set high voltage and, once a pre-set reconnect is reached, opens the shunt, allowing charging to resume. The existing inverters and UPS in any capacity using by normal electricity power can also be use by solar power by adopting a proportionate capacity of flyline solar charge controller and photovoltaic panels manually which helps to reduce electricity bill. Murickens manufactured and market three types of charging controllers MOSFET, IGBT and MPPT charging controller with international quality.


MOSFET PULSE WIDTH MODULATION SOLAR CHARGING CONTROLLERS (PWM) COMMON FEATURES

► The main advantage of Flyline Solar Charger is high efficient " Zero Drop" (we get 100 % efficiency). ► Comparing to MPPT, there is no heat conversion efficiency lose in this special model. ► German Technology assures the quality of product. ► ISO 9001- 2008 certified Flyline Solar Charger. ► It is commonly used products. ► This charging controllers are used for smaller and medium power controlling units. ► The technical features are same with IGBT. ► The control system controls the whole system taking care of battery over charging cut off, deep discharging cut off, protections in battery reverse, PV reverse, Overload and Short circuit. ► Our product connection diagram printed on it. ► Micro controller based. ► LED, bar glass or LCD - display-battery voltage, load on/off, battery condition charging on/of . in 12/24 Vf. ► Up to 80 amp auto detection for 12v/24v (automatic sensing)




FLYLINE PULSE WIDTH MODULATION SOLAR CHARGING CONTROLLERS (PWM) COMMON FEATURES

► The main advantage of Flyline Solar Charger is high efficient " Zero Drop" (we get 100 % efficiency). ►Comparing to MPPT, there is no heat conversion efficiency lose in this special model. ►German Technology assures the quality of product. ► ISO 9001- 2008 certified Flyline Solar Charger. ► It is commonly used products. ► This charging controllers are used for smaller and medium power controlling units. ► The technical features are same with IGBT. ► The control system controls the whole system taking care of battery over charging cut off, deep discharging cut off, protections in battery reverse, PV reverse, Overload and Short circuit. ► Our product connection diagram printed on it ►Micro controller based. ►LED, bar glass or LCD - display-battery voltage, load on/off, battery condition charging on/off. ►Up to 70 amp auto detection for 12v/24v (automatic sensing).

FLYLINE PWM/MOSFET SOLAR CHARGER CONTROLLER TECHNICAL FEATURES
Switching
Zero drop back to back PWM  MOSFET base
Nominal battery voltage
12 V   to 48 V DC
Maximum out put amp
4AMP- 100 AMP
Stand by consumption
less than 1w
Charging REG
2  stage
Battery tem combination
5MV@40DIG
Product Display
LED, bar graph or LCD
Max. panel  input voltage
16V@12V
Battery input
 8 to15 Volt (for 12 V).19 to 30 Volt ( for 24 V)
Panel  input
 10 to30 Volt (for 24 V).21 to 60 Volt ( for 24 V)
Battery input
 32 to 60 Volt ( for 48 V)
Panel  input
 40 to 120 Volt ( for 48 V)
Mobile charging
USB & DC SOCKET in small capacities
DC LOAD
UN REGULATED
Efficiency
100 %
